Hi all,

I popped into the space over the weekend with a few of my hacky, prototype synth module circuits and was happy with the interest and advice from passers by! I’ve not had much of a chance to come to the space since I joined so it was a great first experience of building.

So far I’ve made a few oscillators of various types and made played with making low-fi samplers out of an ISD 1820 voice recorder chip:

image.jpg740×762 116 KB

After playing with the ISD 1820 a little more, I found that it also supports pitch bending, so I’m following up with a second module.

I’m happily playing and bumbling along with limited electronics experience.

I’ll post updates here. See you in the space!

3 Likes
Hi from Marie
#2

This is looking good Karl, do you have any videos of it in action or audio recordings? I’m looking into making synth modules myself.

#3

I’ve not got anything of this one running yet but here’s the next version on the breadboard (the sound clip is just from the podcast I happened to be listening to at the time but it gets the point across): Sampler video

#4

Oooh nice, are you making them Eurorack sized or your own bespoke size? Do you have any tips on where to start with making a modular synth?

#5

I’m building in eurorack format (got some metal panels cut to size by a supplier and didn’t trust myself to make a power supply so got a pre-made one).

I’ve not got much experience myself but I’ve enjoyed making some of the projects from Look Mum No Computer. I like his mad, playful style and how he encourages experimenting and playing with circuits.

#6

Nice, yeah I was looking at making a drum sampler from one of his videos, I might go back and watch some of his videos as I haven’t seen them in a while.

#7

Oh yeah, I have the Wav Trigger board that I’m going to use as a sampler. Although I might also play set it up to use midi so it can be played more musically.

#8

That sounds cool, I have a couple of projects in mind that I want to use a Raspberry Pi with Pure Data as it’s perfect for handling midi messages. I’m looking into how to make CV inputs on a Pi possibly using an Arduino so I can pass data to Pure Data that way. I’ve done this kind of thing with din midi before but would like to make it more easily interface with a modular system using CV.

#9

I will be following both your projects with great interest!

1 Like
#10

IMG_20191019_161516080
IMG_20191019_161516080.jpg3072×4096 2.61 MB

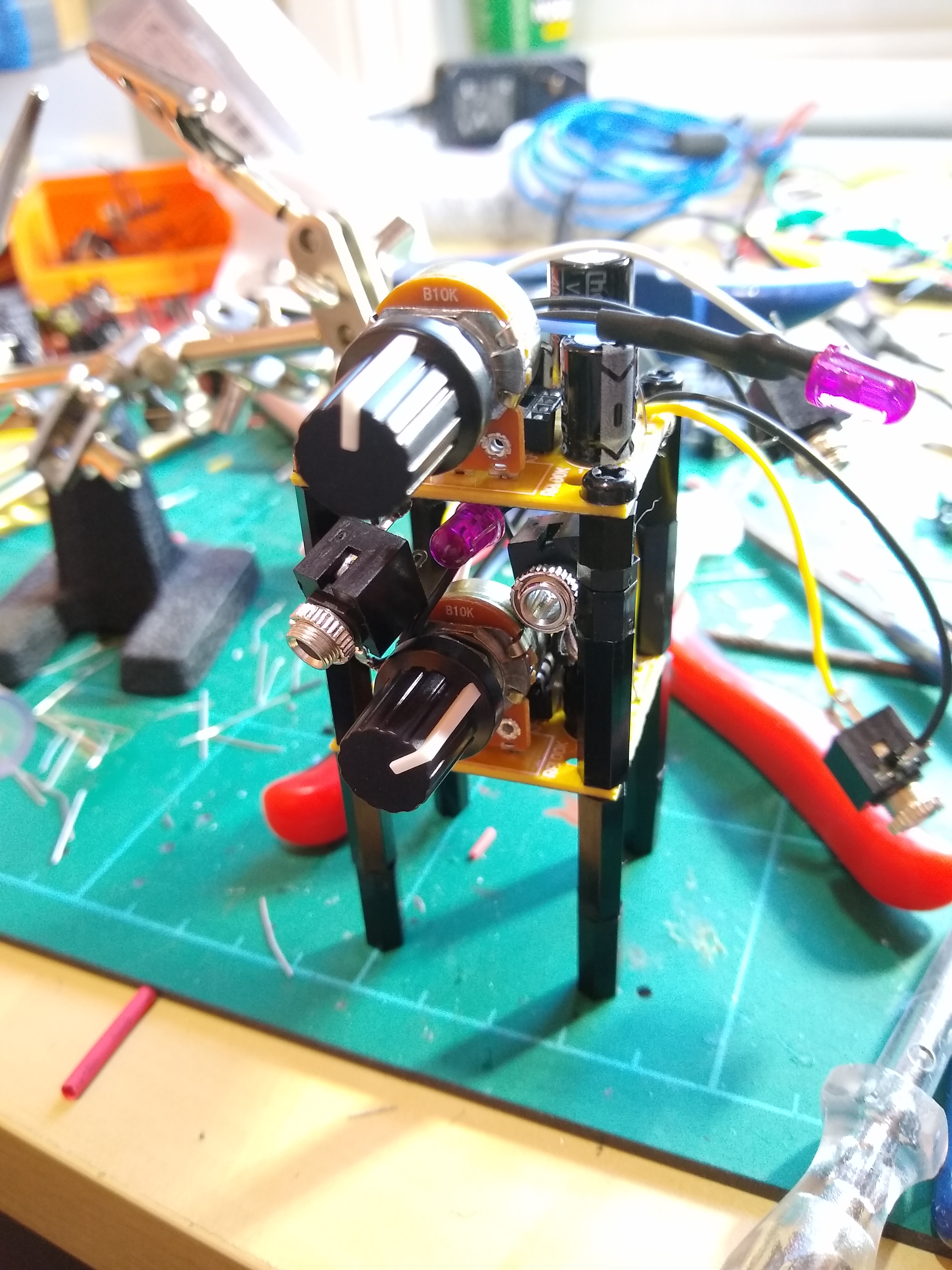

I’m stacking a few simple amp circuits

1 Like
#11

yes tekmark here
presently befoe me 1980 OCTAVE KITTEN ir usesmany 40 serise chips and a
frequency/volt chip that costs had a korg ms10 and powertran 2000
eurorac modules vero used to sell them surpless is best great thing is free runing sounds keep me updated

1 Like
