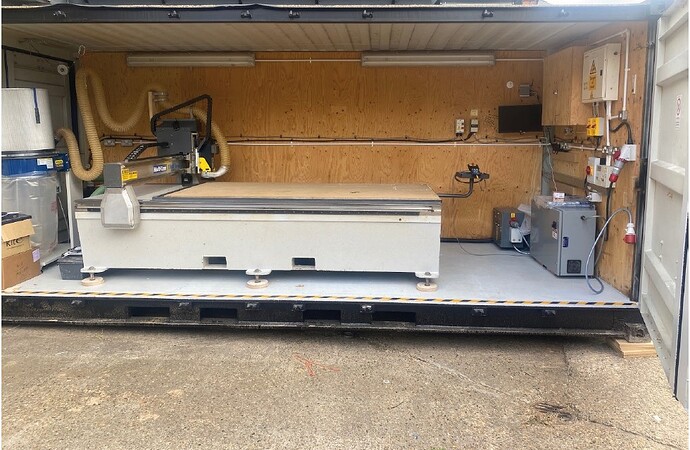

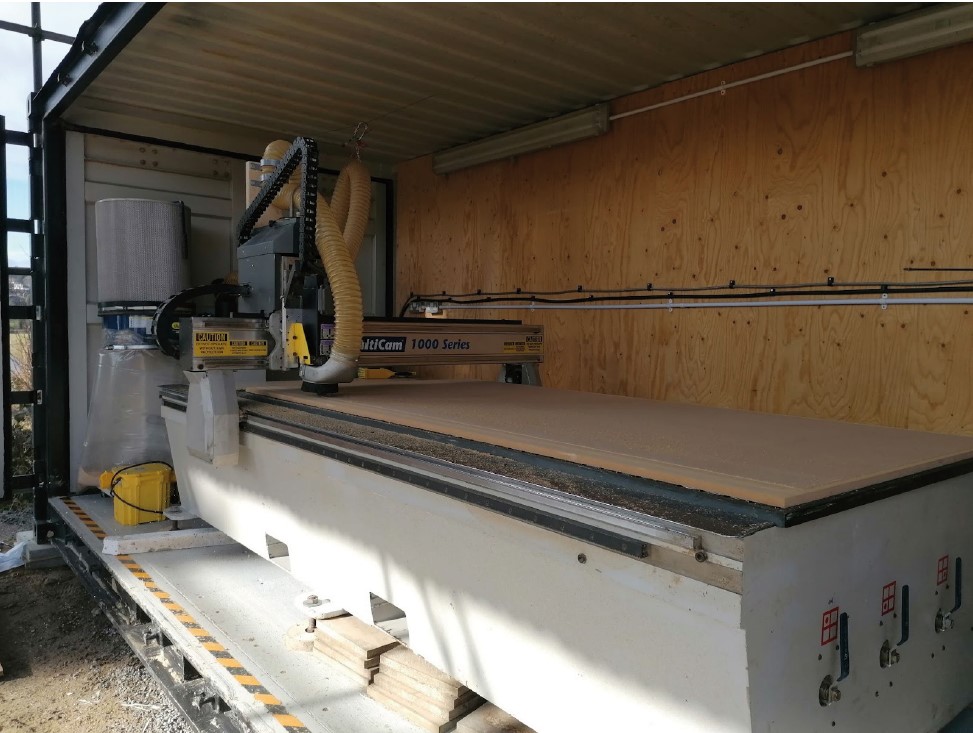

Hi There. We are looking for a home for a really great CNC router housed in a shipping container - thought it might appeal so a maker space somewhere? its American made Multicam CNC router with PC, extract wiring everything in an ISO 20ft container, single phase or three phase. It is an item for sale for a very reduced rate as we need to shift it - im new here so not sure about rules on posting it here? Thanks
1 Like
Photos? And price?
Thanks!
2 Likes

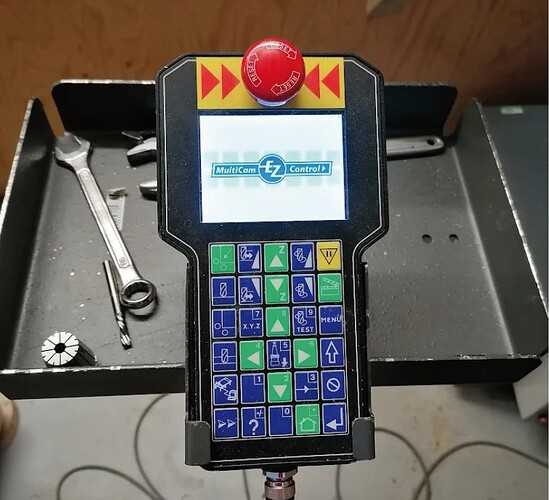

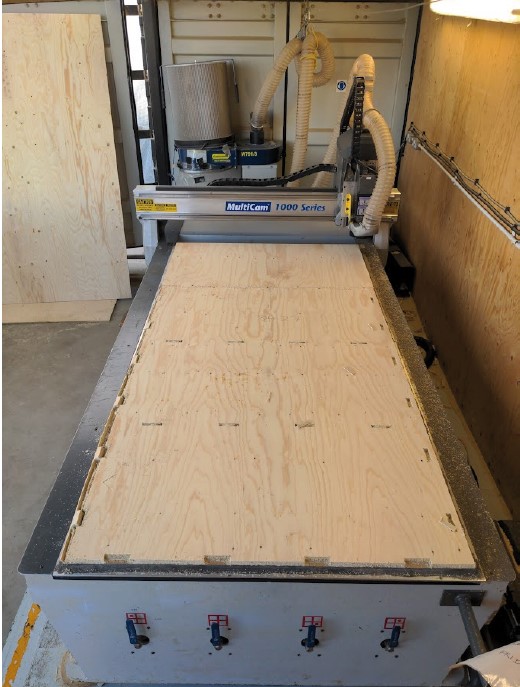

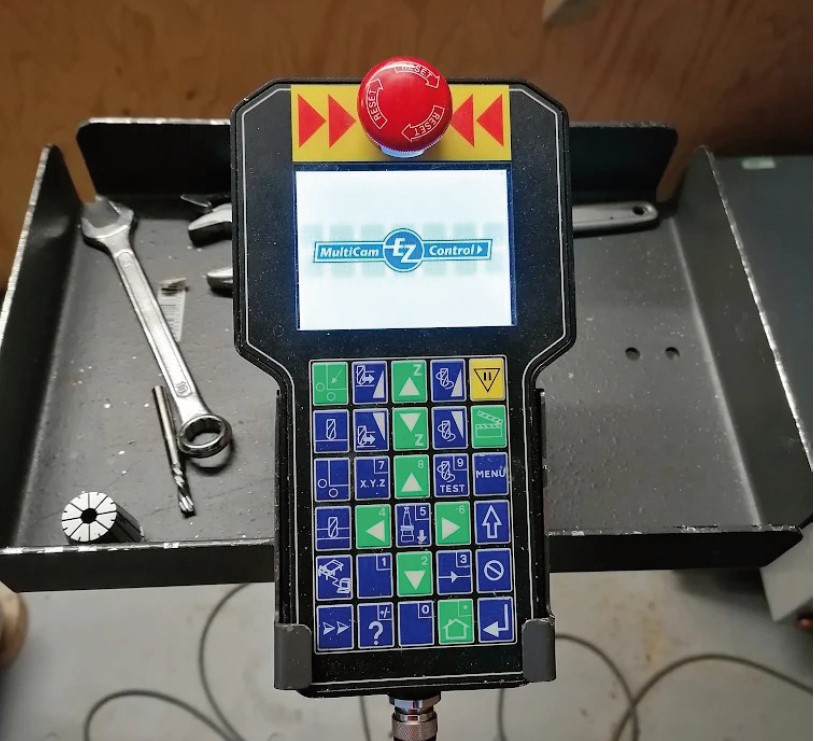

Hi! The machine including container pumps, single phase converter, PC, extraction etc is £10k plus VAT, plus delivery (aprox £1k). Its super accurate production machine new they are £50k far better than the cheap imported Chinese machines available - great for timber and aluminium. Recently refurbished, new pc, new extraction. The container alone being side opening is worth at least £6k. Heres the spec Model I - 103 Made in the USA. Manufactured in 2010 ● Solid steel plate frame. ● Overall dimensions 3940x1803x1371mm ● Working Area 1270x2540mm. 25mm phenolic vacuum bed. 4 zones with manual valves ● Weight 1184kg ● Z-Axis clearance 114mm ● Max cutting speed 20 m/min; rapid traverse speed 30m/min ● Drive system X and Y axis : Rack and pinion ● Drive system Z axis : Lead screw ● 25mm liner bearing profiles in X, Y and Z axis ● Two-phase digital, brushless, synchronous electric motors ● Voltage/Current : 380V 3phase / 28.5A ● User friendly handheld controller ● Ethernet connection ● Manual tool change with calibration block, ● Model Colombo RS90. Made in Italy ● Power 7.5HP ● Voltage 220V/380V ● Current 21.5A ● Collet size ER25 ● Fan cooled, Busch pump Mink MM 1252 AV ● 380V 3phase 5.5kW ● Ultimate pressure 100hPa ● Noise Level 75 dB ● Weight 240kg, Charnwood W791/3 3Phase 2HP, Single - triple phase rotary converter Wavenet 15kW Rotary Phase converter, PC Fanless Intel i3 Mini PC. 4GB DDR4 RAM 128GB SSD. Windows 10 Home. Wall mounted. 21” LCD screen. Wall mounted Multicam Tools Suite 4 installed., Electrics ● 3phase and 1phase boards with suitable breakers and switches ● Industrial grade lighting ● Multiple socket points for battery charging and accessories ● IP44 1phase and 3phase sockets mounted on the outside of the container, GPS tracker Lightbug GPS tracker + charger. Housing with security screws on the front container door. Requires subscription. Shipping container 20feet corten steel shipping container with full side doors. Lined with plywood on 2 vertical internal sides. Internal container floor lined with phenolic resin coated plywood.
This is the one I imagine, with a lot more pictures.
1 Like
