Make a box help please

Projects
1

Evening all,

I need to make a box that is shaped like a two step.

Can anyone offer any advice on how i can either use a box generated system o do this or how i can calculate making the comb joins using something like inkscape.

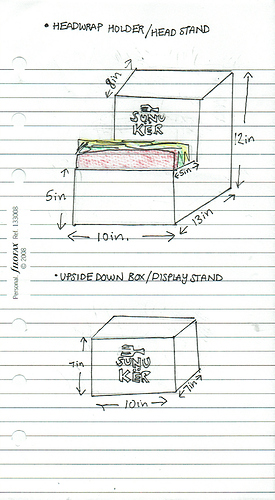

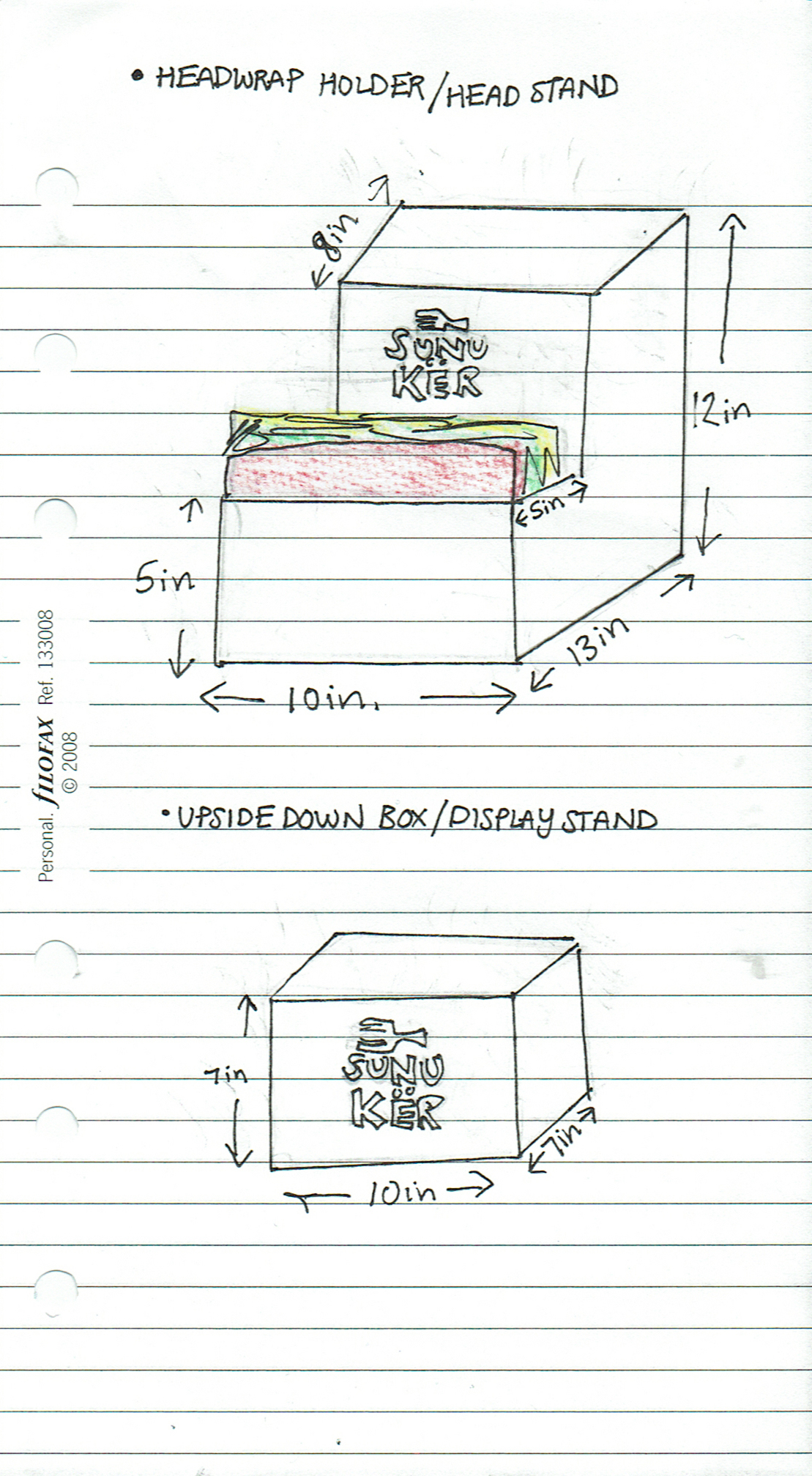

Picture of box attached.

sunukerstall.jpg1109×2015 1.35 MB

Many thanks in advance.

2

What about this:
http://www.makercase.com/
?

3

But I can’t seem to go beyond the standard box?

I can make the smaller box no problem, well with some modifications in inkscape so the bottom can be open with no teeth.

But I cannot figure out how to make the first box as I can only provide 3 measurements and I need to add few more.

4

This loos like it might be the right tool - you supply the basic shapes and then tell it which edges fit to which. Will have a fiddle and report back…

https://clementzheng.github.io/joinery/

1 Like
5

Completely comprehensive instructions here:

Looks really good :slight_smile:

2 Likes
6

OMD’s - Amazing and thank you!

1 Like
7

Also this:

1 Like
8

Thanks Rich, will check this out also, my brain is on overload at the moment and trying to figure how actual use Tom’s suggestion.

9

I struggled to produce a SVG that was “deconstructed” enough to be able to pick the individual edges…

10

that’s what I did :disappointed:

I think I’m tired, I’ll try again in the morning. I can’t currently work out how to attach the choosen join option to the box segment. Will revisit after some rest.

Thanks for the assistance! :blush:
