Laser connection (?) trouble

Discussion
1

@lasertechs

Hey, I’m having some trouble with the laser cutter

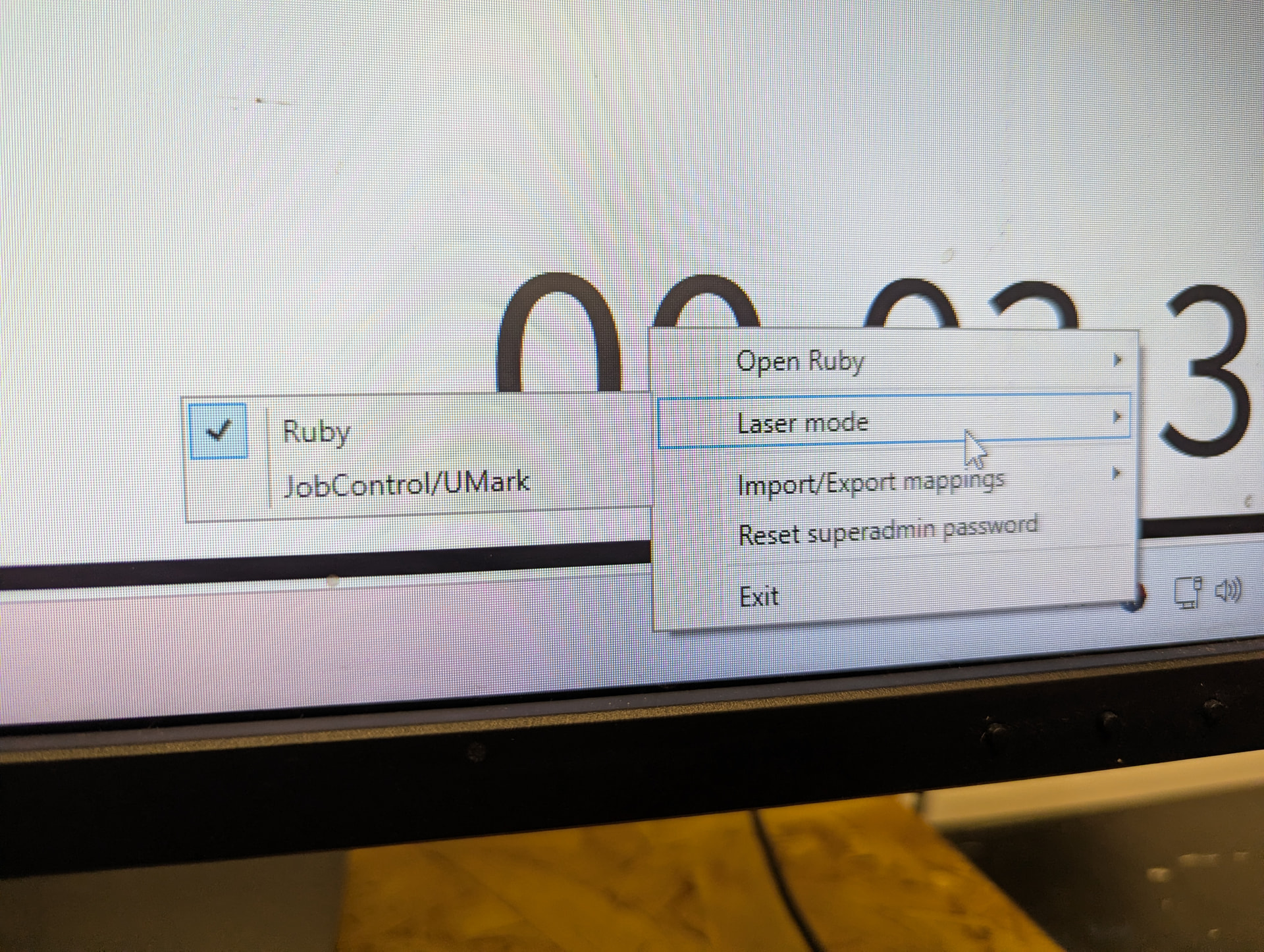

I can’t get the laser alignment cross hairs to show up on the prepare screen. I’ve gone through all the steps I could see on the discourse user manual (like checking laser mode, restarting things and repeating all the setup steps) but no luck. When I first logged in there was an “update complete” notification, so maybe it could be related to that?

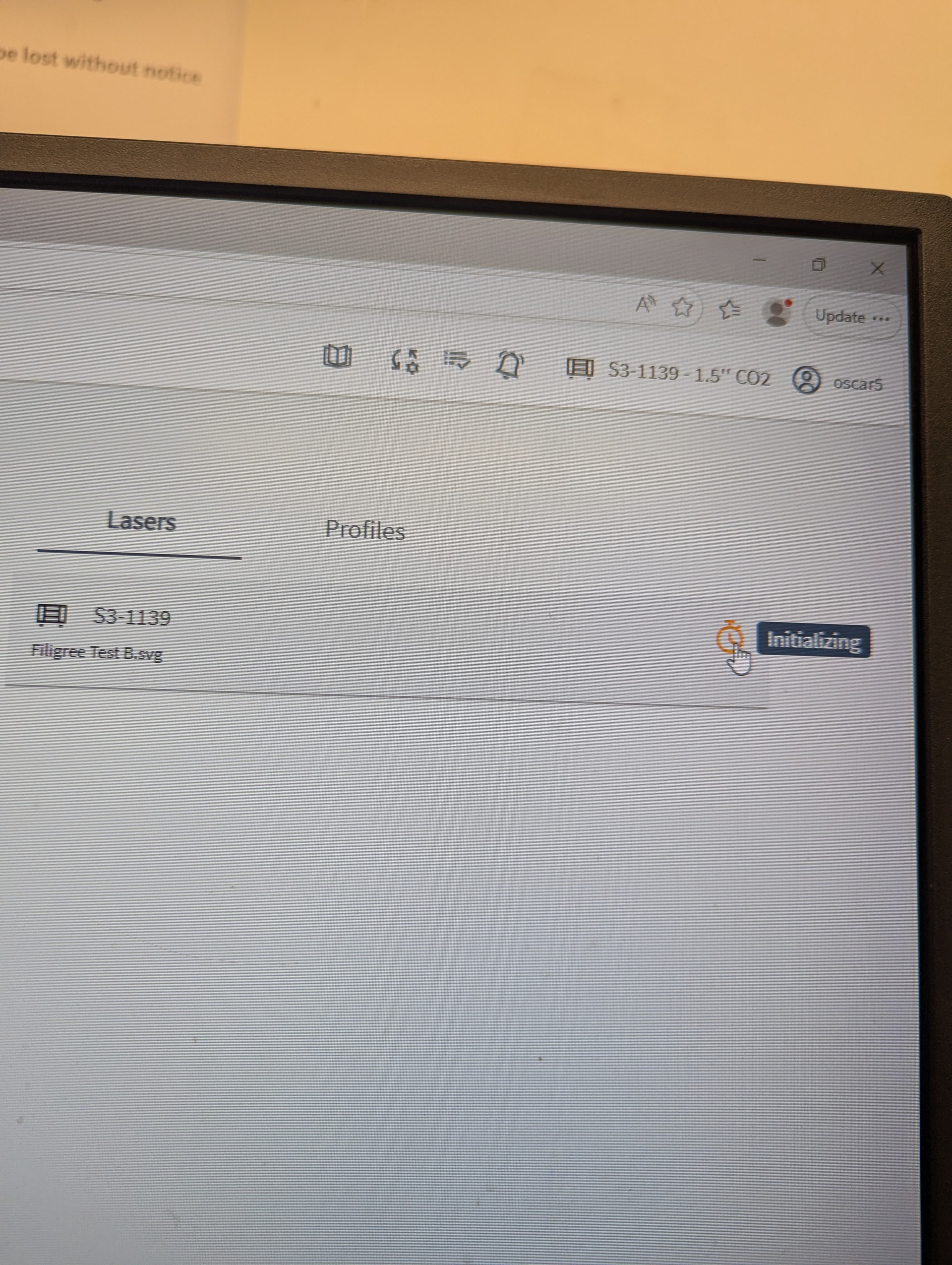

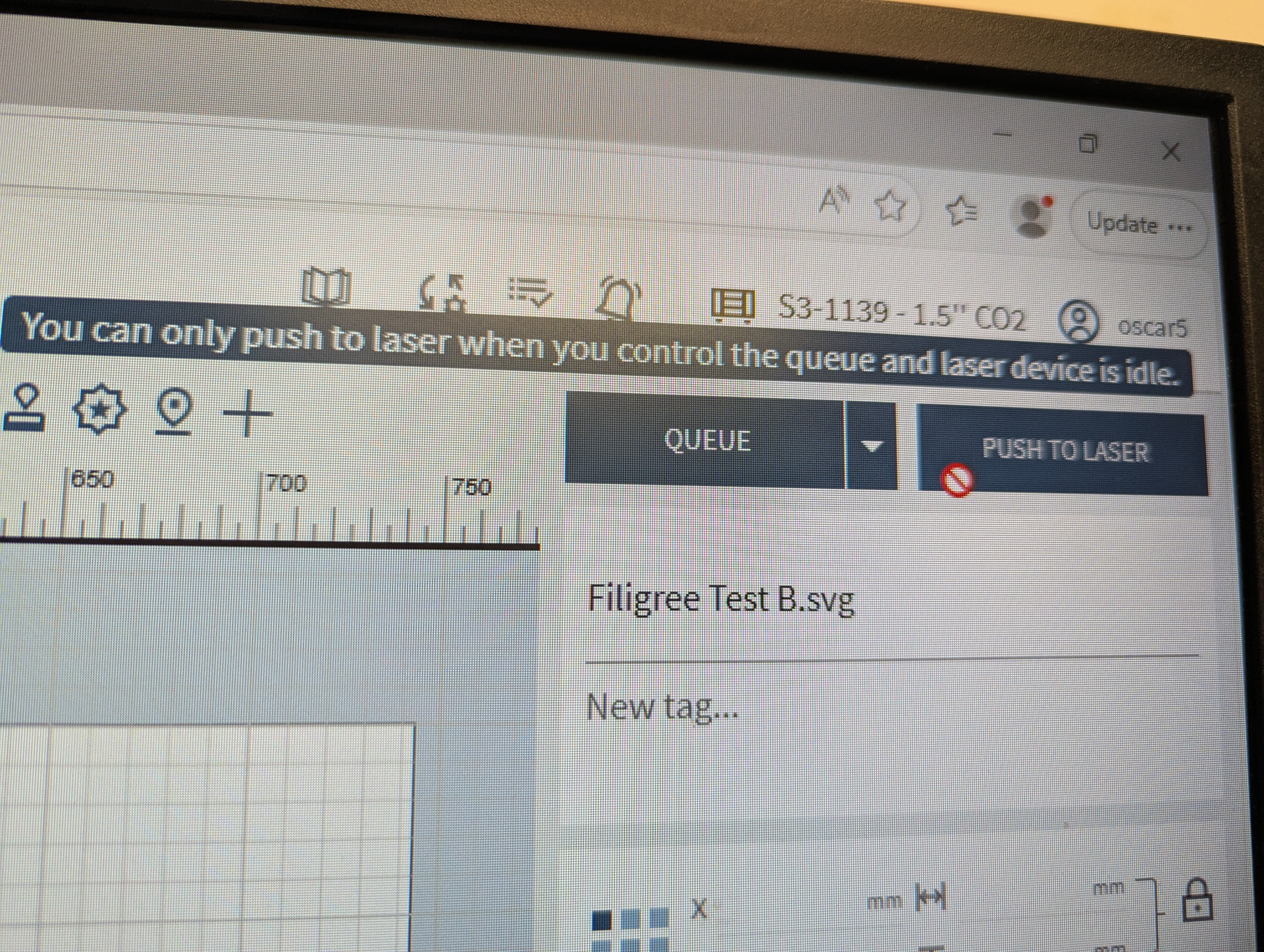

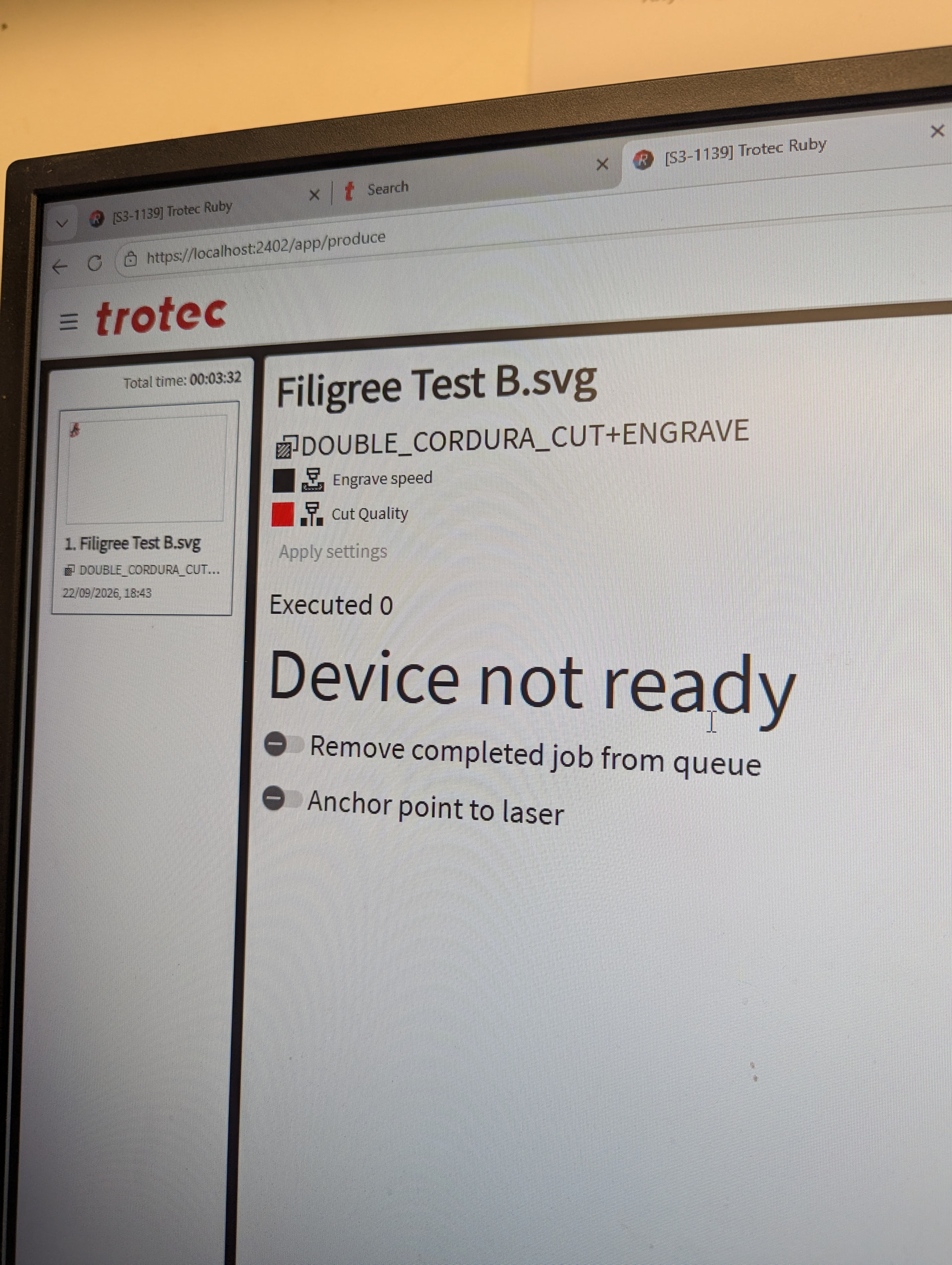

Looks like it’s not connecting properly as it’s been stuck on initialising and it’s not possible to use any laser controls on the PC, or send stuff to the laser.

Axis control on the actual laser buttons works fine. The green light in the middle of the arrow buttons stays blinking.

Is there anything I can do to fix this?

I’ve attached photos that might be helpful in working out the problem:

PXL_20260922_175617193
PXL_20260922_1756171931920×2550 1.03 MB

PXL_20260922_174416521
PXL_20260922_1744165211920×1446 989 KB

PXL_20260922_174349640
PXL_20260922_1743496401920×1446 1.22 MB

PXL_20260922_174407661
PXL_20260922_1744076611920×2550 1.36 MB

Thanks in advance

2

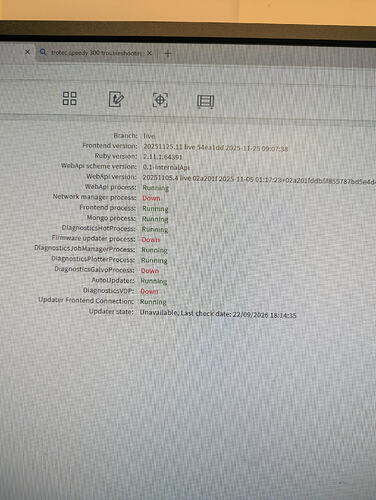

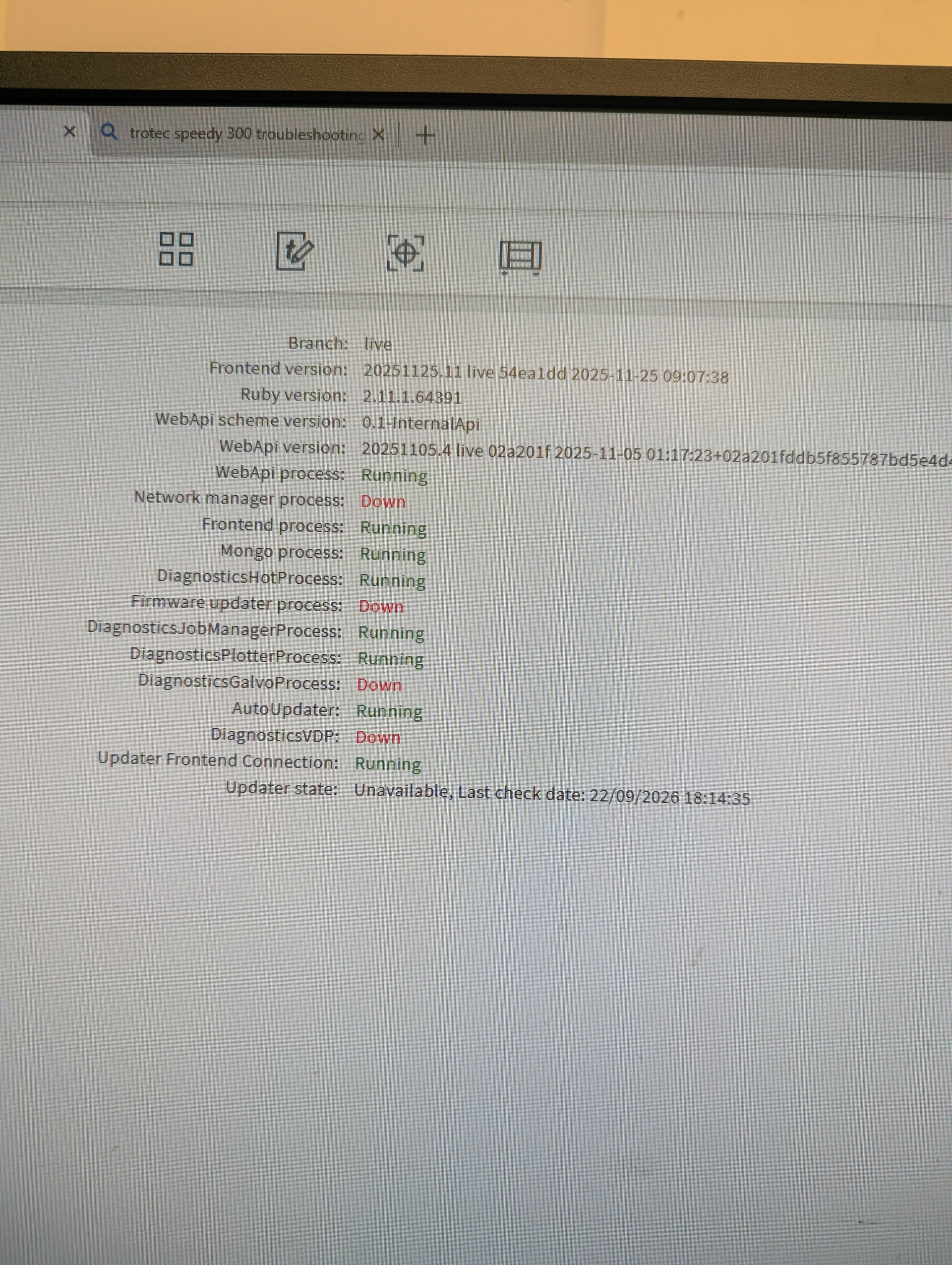

Had a peek at the info tab to look for a problem. Looks like this might be it, but it’s way beyond my understanding so I’m adding it to this post in case it helps the @lasertechs

PXL_20260922_180925216
PXL_20260922_1809252161920×2550 1.41 MB

3

Just sent you a private message with my number.
Feel free to call.

1 Like
