How was this wood joint tooled?

Tags: #<Tag:0x00007f1acdae2a38>

(Afshin Dehkordi) #1

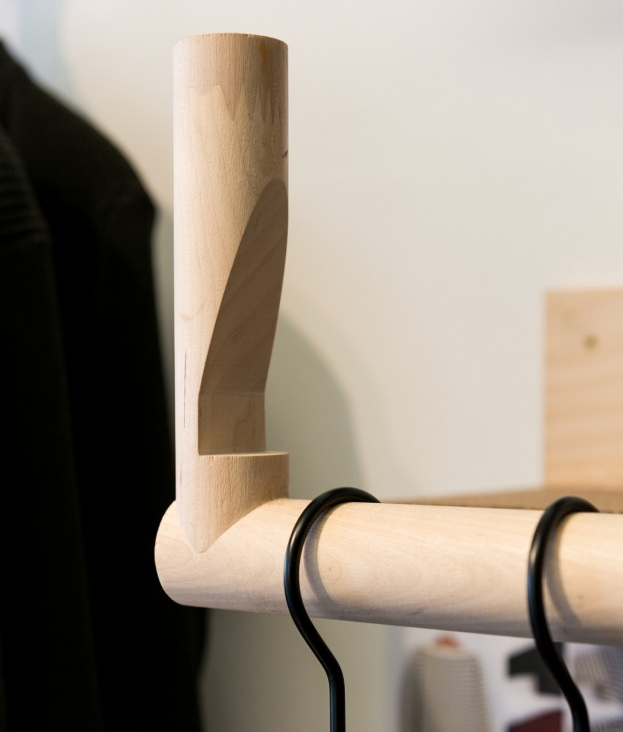

Saw this in a shop, want to recreate it. Curious how its made, especially how its made with such clean lines…i would have thought drilling into the side of a cylinder would create a lot of tear out or at minimum splintered edges.

Have I missed a trick?

(Mark Johnson) #2

Double mitre

(Afshin Dehkordi) #3

Don’t know what that is or how to do that

(Tom Newsom) #4

There are no circular cuts involved, just a V-shaped notch in the lower part and a V-shaped point on the vertical part.

(Mark Johnson) #5

Couldn’t have said it better

(Mark Johnson) #6

May even be screwed and plugged or dowelled from below for added strength

(Afshin Dehkordi) #7

Done on chop saw at an angle or by hand? Jig?

(Andy Paine) #8

Probably a router table/spindle moulder depending on the scale of the joint and how many of these they are making

(Mark Johnson) #9

Easy to do by hand

(Afshin Dehkordi) #10

Can you show me? Cup of tea, slice of cake on me?

I just bought Ryoba Japanese saw too! It cuts so clean!
