Hi All,

I’m having some problems with the audio in my car. With some crude troubleshooting I think I have identified the faulty component.

There are four wires that connect to this board, two from the audio output of the head unit and then two which lead to a 3.5mm stereo jack that ultimately feeds the speakers.

I was hoping someone could help me identify the nature of this board so I can order a replacement:

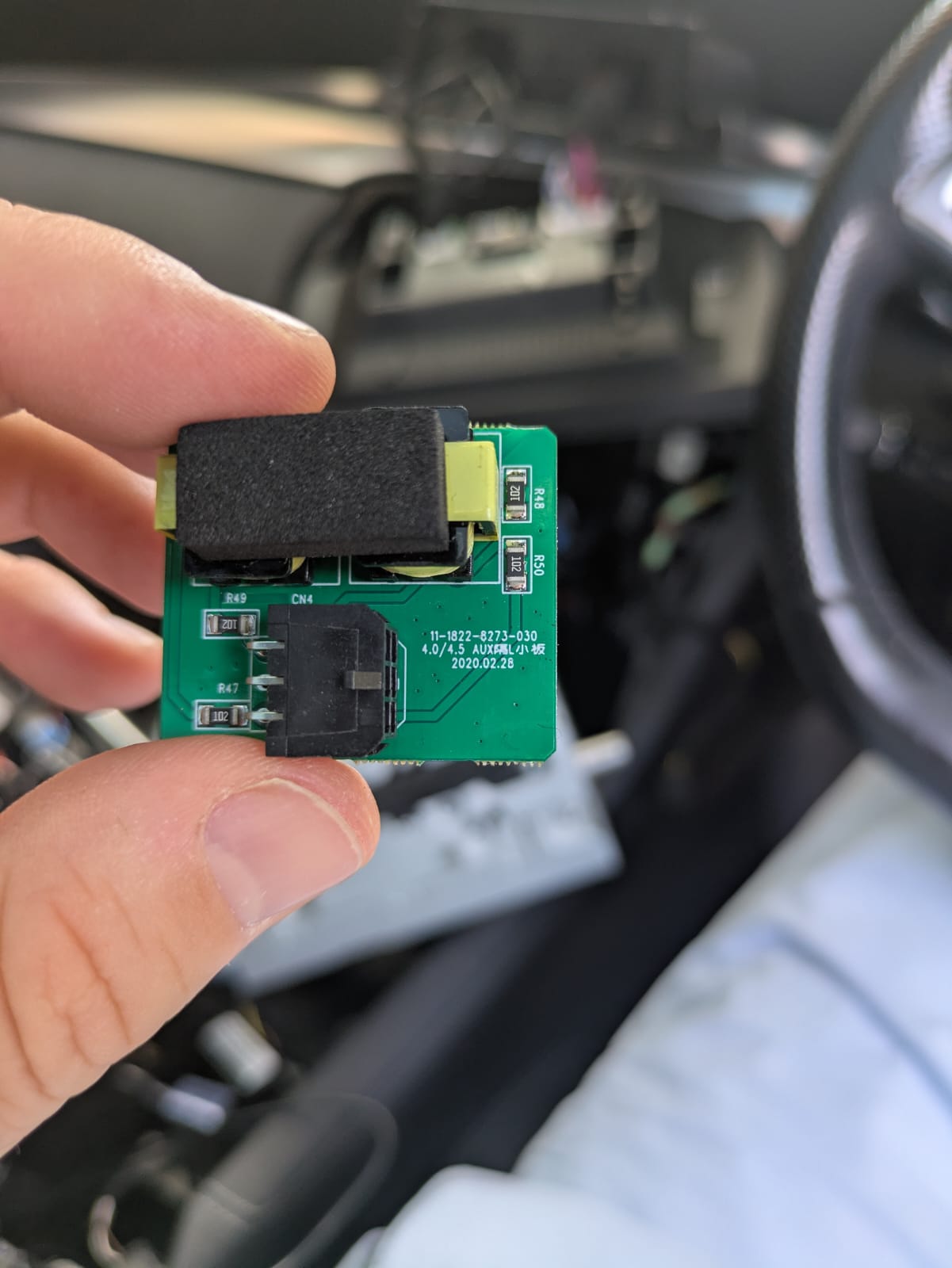

IMG-20250831-WA0030
IMG-20250831-WA00301201×1600 110 KB

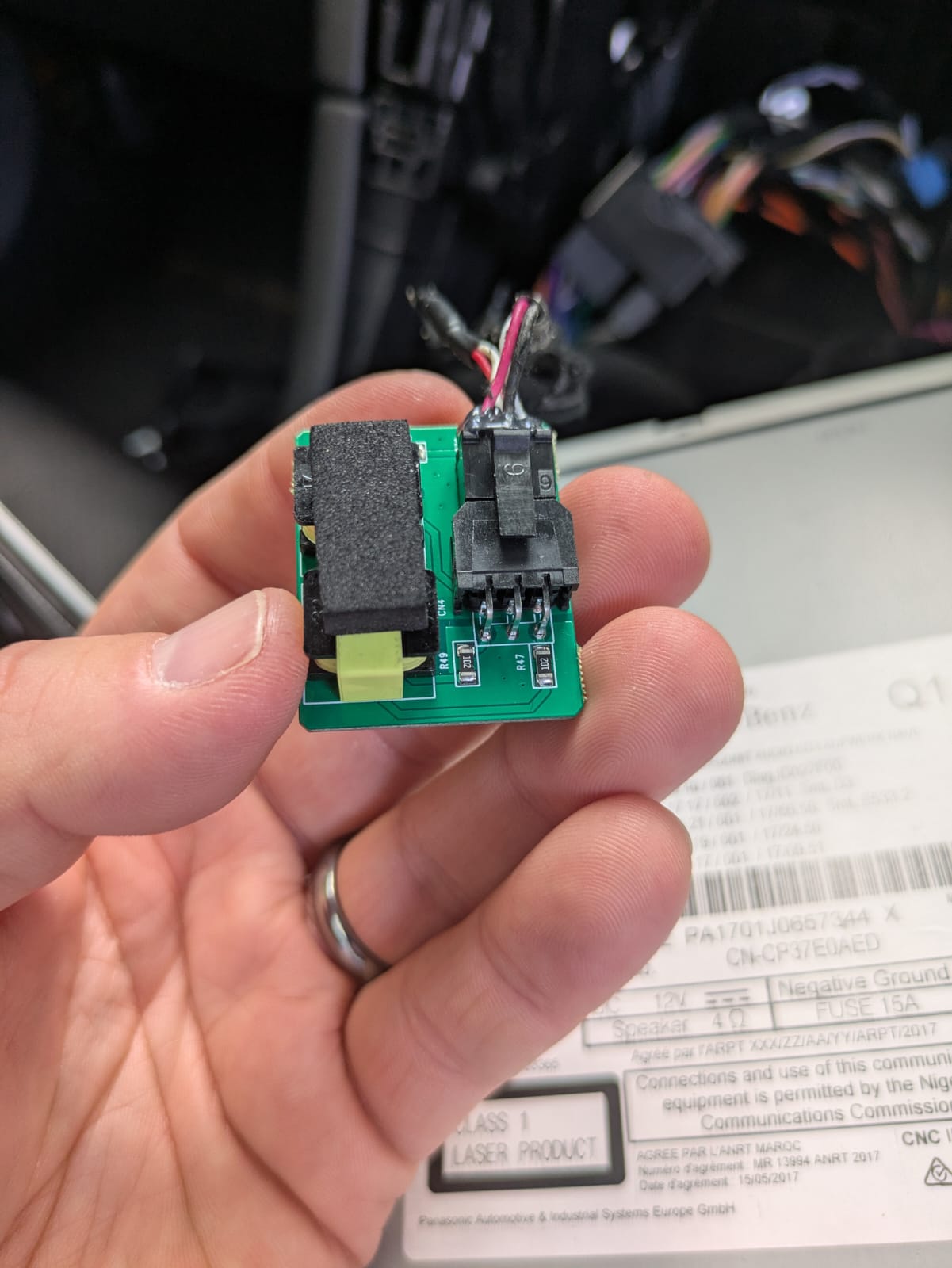

IMG-20250831-WA0033
IMG-20250831-WA00331201×1600 132 KB

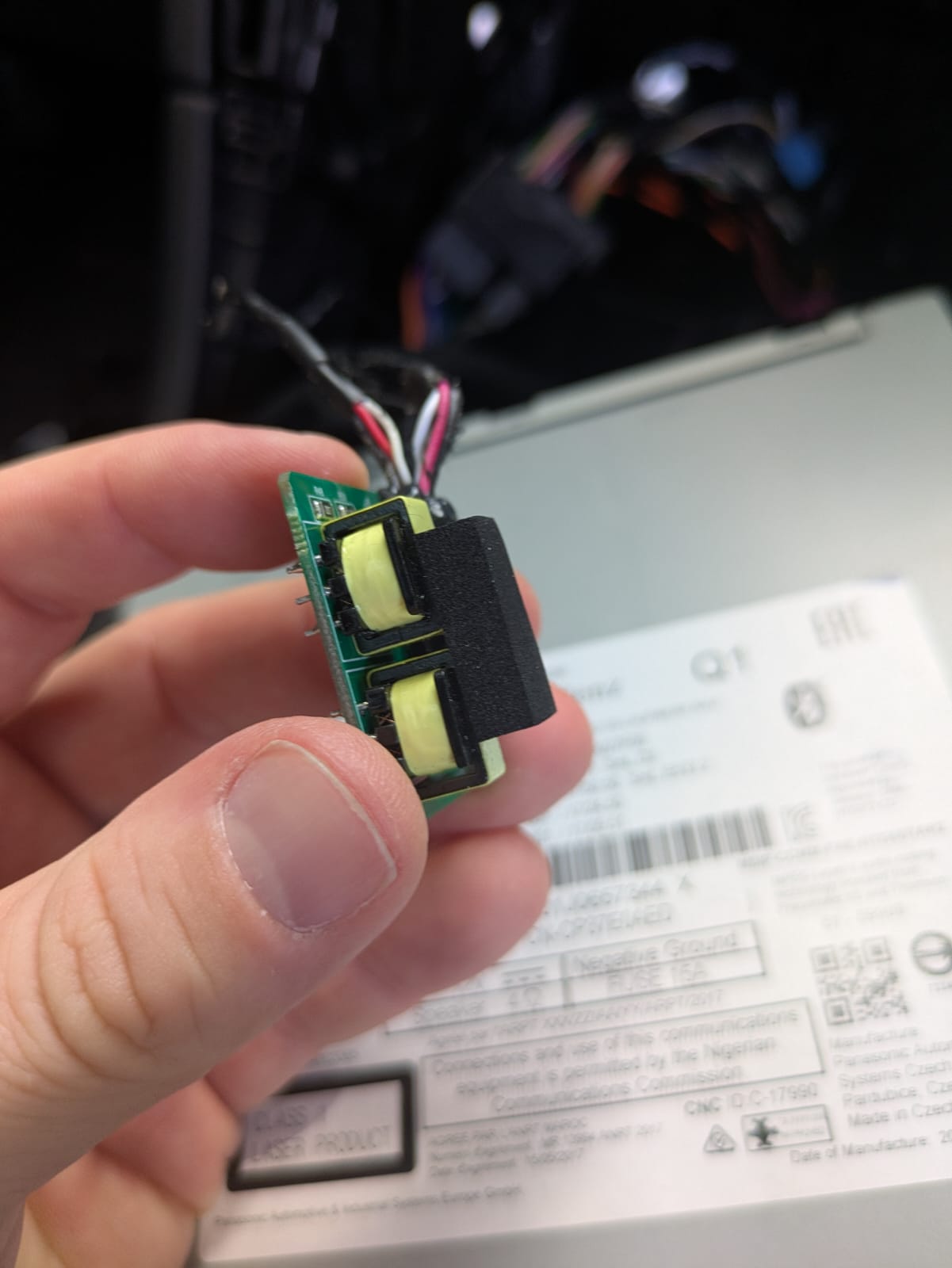

IMG-20250831-WA0032
IMG-20250831-WA00321201×1600 92.1 KB

2

@joeatkin2

3

Those are audio isolation transformers (“rep coils” in BBC speak) to prevent interference due to earth loops. I’d be very surprised if they had failed. Do neither of the channels work?

4

What is the fault symptom?
