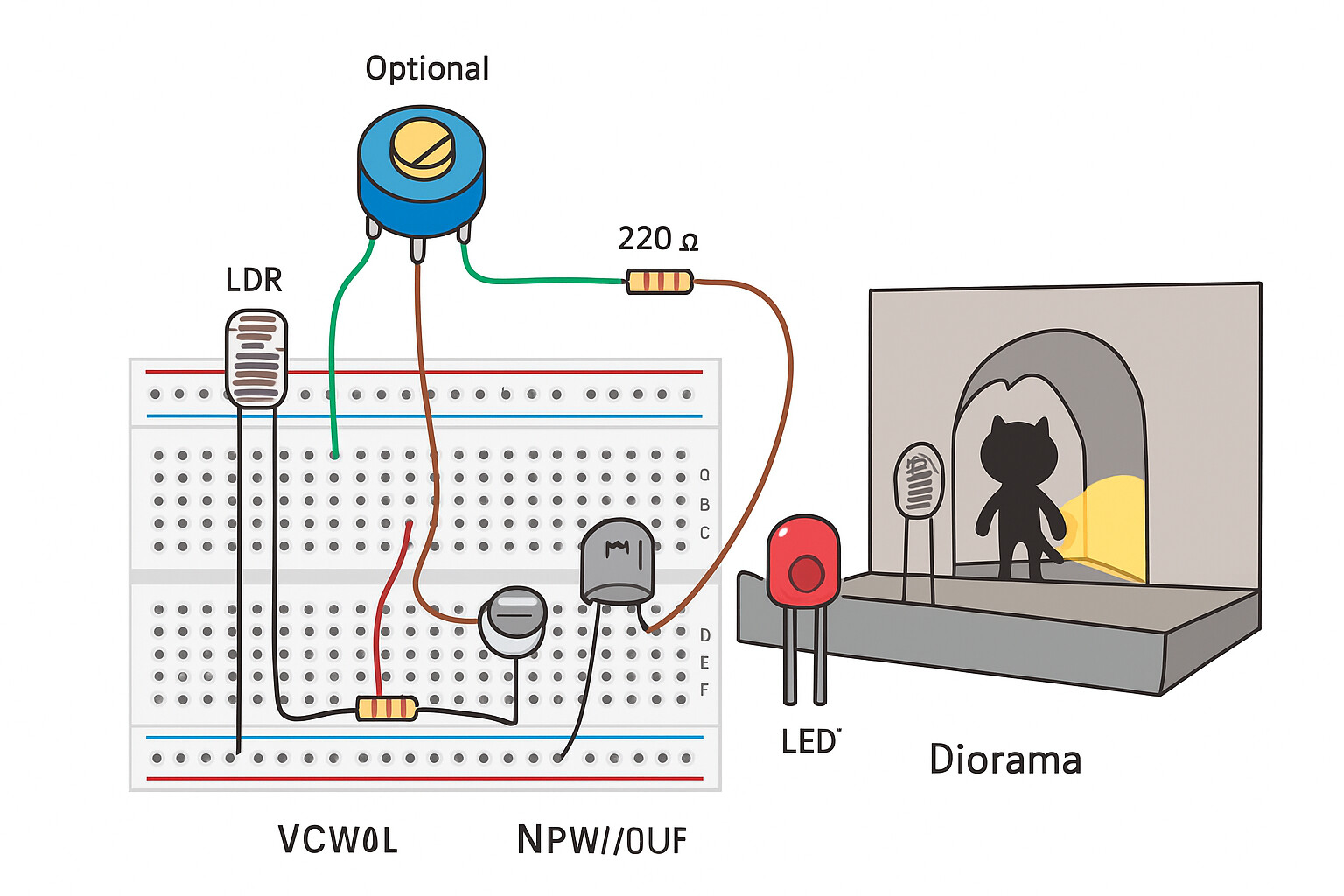

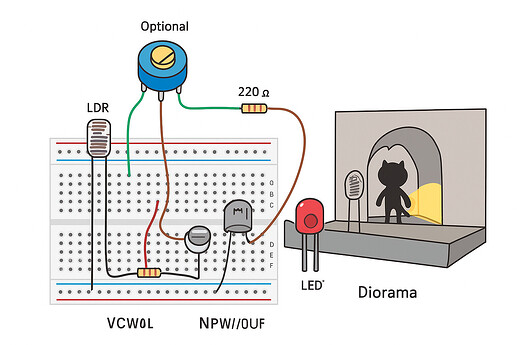

This is ChatGPT’s attempt to produce a breadboard diagram for a small project.
Um, no…
5 Likes
I’m surprised there isn’t a loaf of bread tbh
1 Like
Can ChatGPT help me find a 3-pin resistor or a 0uF capacitor?
Actually, yes it can… (paraphrased from a real ChatGPT reply):
(it’s definitely getting better…)
===== ChatGPT reply follows: =================================================
Can you help me find a 3-pin resistor or a 0uF capacitor?
Yes — and this is a great question, because both of those terms usually mean something different than they sound.
## 1) “3-pin resistor”
There is no standard component called a 3-pin resistor, but people usually mean one of these:
Potentiometer (most common)
- 3 pins
- Two pins = fixed resistance ends
- Middle pin = adjustable wiper
- Used for volume knobs, tuning, calibration
What it is NOT
- Not a normal fixed resistor
- Not something labeled “3-pin resistor” in catalogs
## 2) “0uF capacitor”
A 0 µF capacitor does not physically exist.
When you see 0uF or 0µF, it usually means:
“Do not populate” / placeholder
- The footprint exists on the PCB
- The capacitor is optional
- Often used for tuning, filtering, or testing
It does NOT mean
- A real capacitor value
- Something you can buy as “0uF”
In practice, you leave it empty unless the design notes say otherwise.
1 Like
