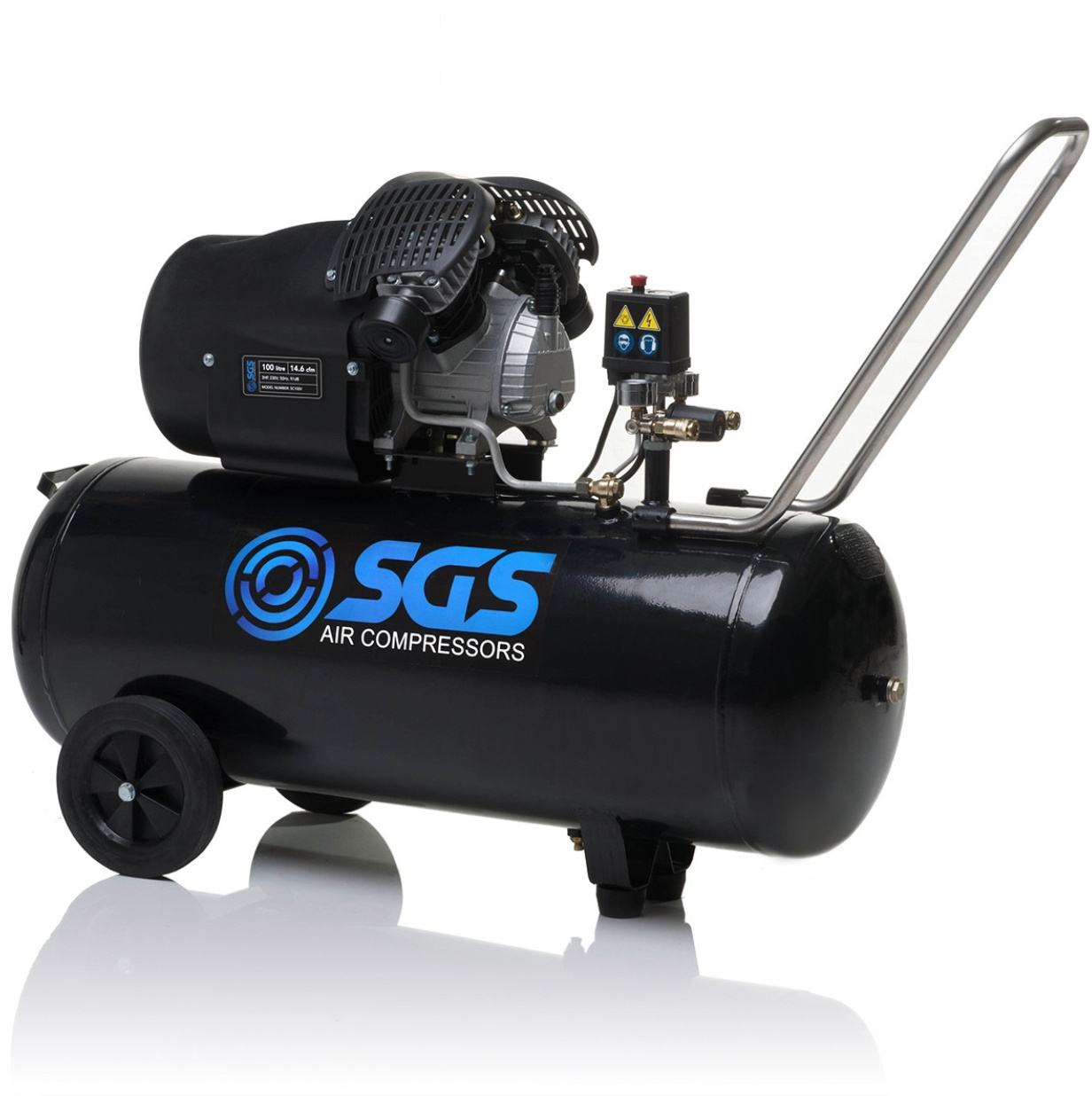

SGS SC100V
Details
| Part Number | SC100V |
|---|---|
| Product Weight | 57 Kg |
| Lubrication Type | Oil-Lubricated |
| Tank Size | 100 Litres |
| Air Displacement (CFM) | 14.6 CFM |
| Portable or Stationary | Portable |
| Sound Level | 97 dB |
| Power | 2.2 kW |
| Engine HP | 3.0 HP |
| Engine RPM | 2850 RPM |
| Voltage | 230V |
| Air Outlet | Euro Quick Release |
| Discharge Pressure | 116 PSI / 8 bar |
| CFM Range | 10 to 15 CFM |
Condition Notes
New purchase by SLMS Nov. 2019
PPE / Safety Checklist
- Ear defenders or ear plugs should be worn, as this is a very loud tool.
Induction and Training
No induction required, but be sure to power off the machine and drain the tank after each use. See compressor usage document below.
Maintainers
none
Risk Assessment
Air Compressor and Airline Risk Assessment
Before Use
During Use
After Use
Power off the machine
Drain the air tank
Maintenance
COMMON AIR COMPRESSOR MAINTENANCE & USAGE QUESTIONS
References
SC100V Manual v1.1.pdf (1.4 MB)
